HV Electric Vertical Mast Lift, 12 m working height

ElectricSale and rental

Capacity: 0.2 t
Specifications by model: 1 model

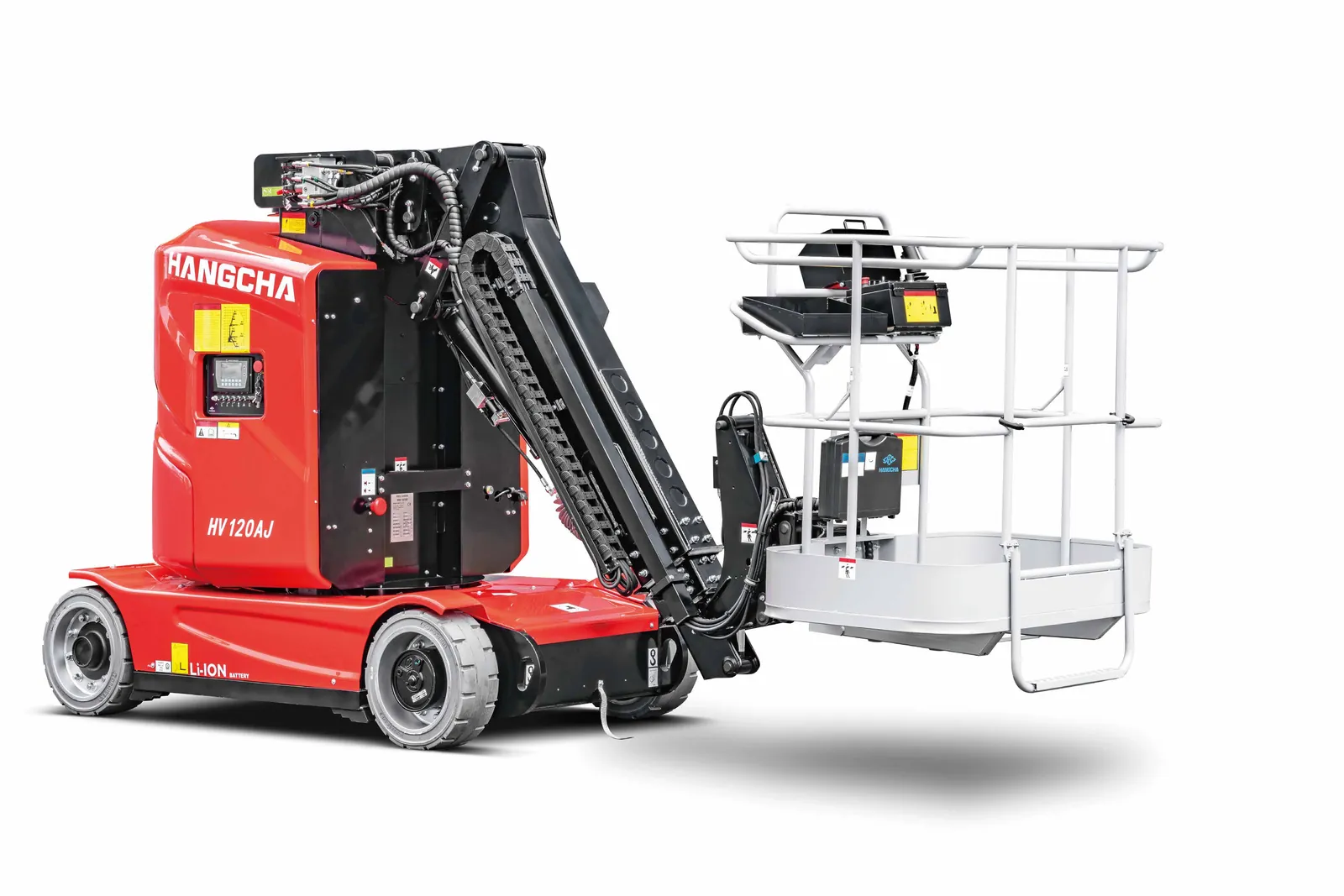

The HV series is an electric vertical mast lift (model HV120AJ) offering a 12 m maximum working height, a 10 m platform height and a 200 kg capacity. Its 1.2 m wide chassis and 2.6 m outside turning radius let it work in narrow aisles and confined spaces. It comes with a lead-acid battery as standard and an optional lithium battery, suited to maintenance, assembly and servicing at height. Available for sale and rental.

12 m maximum working height, 10 m platform height
Ultra-narrow 1.2 m chassis and 2.6 m outside turning radius
Three-level telescopic jib and horizontal basket rotation
Lead-acid battery as standard, optional lithium battery

Distributed brand : Hangcha

The needs assessment is free and without obligation.

Available for sale, new and used Available for flexible rental Maintenance handled by our teams

Specifications by model

Hangcha specifications for the 1 model in the HV Electric Vertical Mast Lift, 12 m working height range, by capacity, power type, lift height and dimensions.

Model	HV120AJ
Reach / Working Range
Max. working height(m)	12 m
Max. platform height(m)	10 m
Horizontal extension distance(m)	5.5+0.5 m
Horizontal height(m)	5.99 m
Capacity
Capacity(kg)	200 kg
Dimensions
Length(m)	3.9 m
Width(m)	1.2 m
Height(m)	1.98 m
Ground clearance (to center of frame)(mm)	120 mm
Ground clearance (to anti-overturning plate)(mm)	80 mm
wheel base(m)	1.6 m
Turning radius(inside)(m)	0.75 m
Turning radius(outside)(m)	2.6 m
Platform length(m)	0.8 m
Platform width(m)	1.2 m
Rotation / Angles
Turret rotation(°)	345 °
Platform rotation(°)	120 °
Short jib swing angle(°)	+65/-60 °
Wheels / Tyres
Tire size(mm)	454*178 mm
Battery / Charger
Battery(V /Ah)	48 / 160 (lithium battery) / 200 (lead acid battery) V /Ah
Charger(V /A)	48/40 V /A
Performance
Max. Travelling speed(km/h)	6 km/h
Max. Travelling speed (working status)(km/h)	0.5 km/h
Max. slope rating(%)	30 %
Maximum allowable inclination(°)	3 °
Motors
Driving motor(Kw)	2*1.5 Kw
Oil pump motor(Kw)	6 Kw
Weight
Weight(kg)	5000 kg

Hangcha manufacturer specifications, given per model and subject to change; final figures are confirmed in your quote.

Highlights

Every job is in your reach: your reliable, powerful and connected working machine.

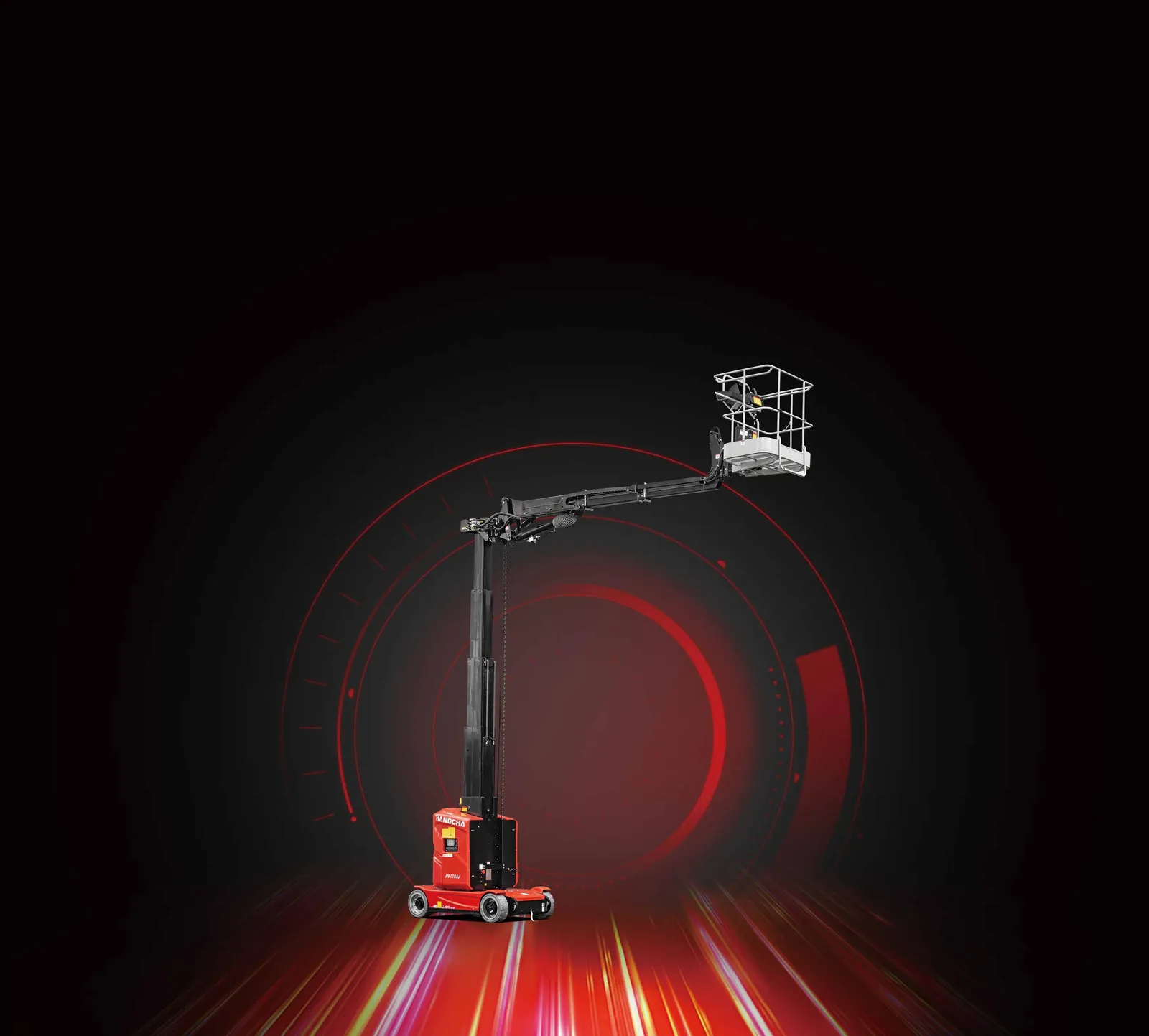

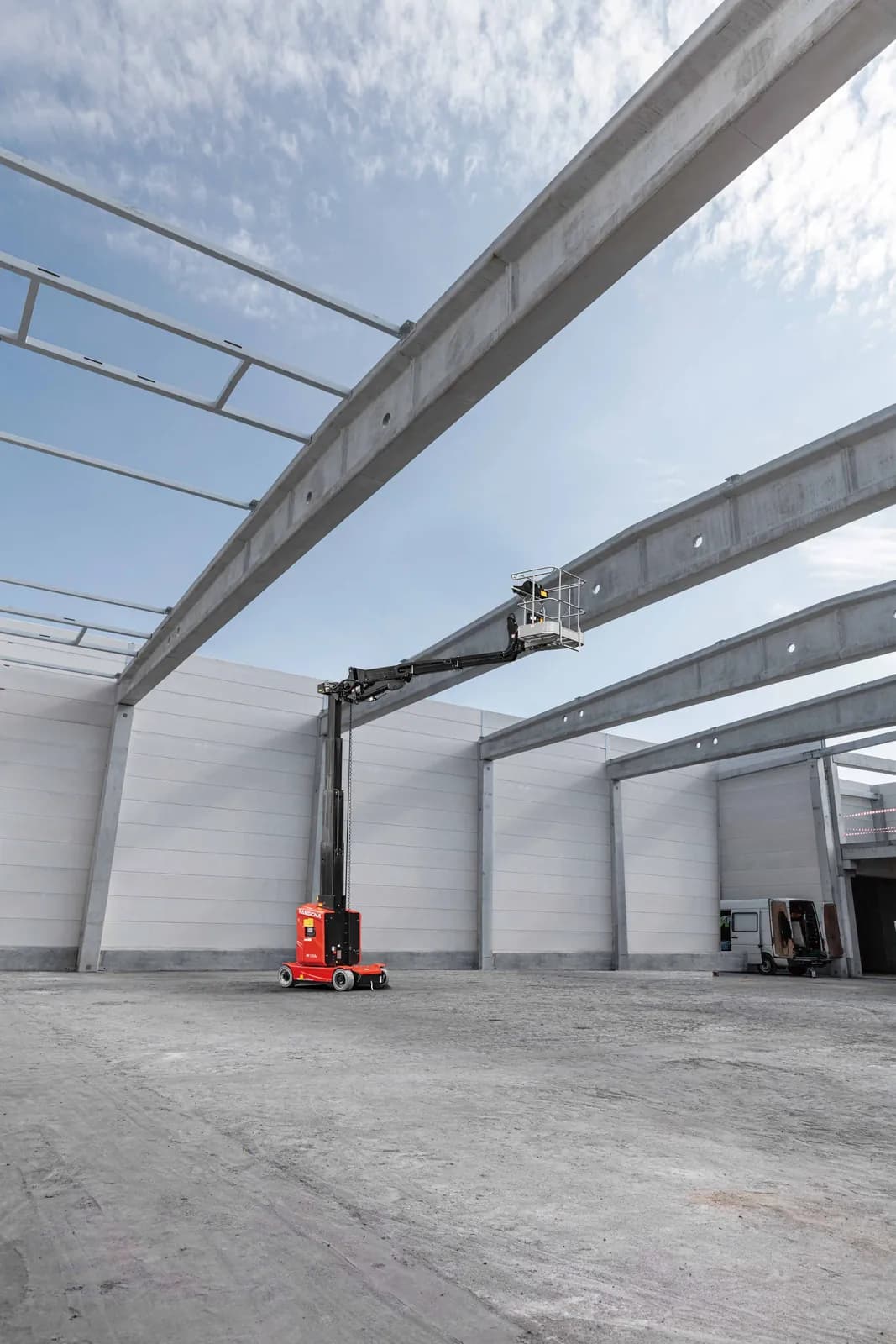

Three-level telescopic flying jib plus basket horizontal rotation make for a wider working range.
Works like an extension of you.
Equipped with overload sensing system, tilt alarm, emergency lower system and other complete safety features.
Reduced mast and flying jib self-weight ratio, minimal energy consumption, for stronger endurance.
Automatic hydraulic leveling of the work platform, smooth and without impact.
High quality guarantee, excellent performance, safety and reliability.
AC drive system is energy-saving and efficient, the motor is maintenance-free, and all movement speeds use a proportional control system.
Compact structure: 1.2 metre ultra-narrow body, 2.6 metre outside turning radius, giving it good passability.
Standard lead-acid battery, optional lithium battery, five-year warranty.
Built-in wide-voltage smart charger for convenient energy top-up.
The machine is equipped with the CAN BUS control system for easy troubleshooting.
1200 mm ultra-narrow body.
2600 mm turning radius.

Standard equipment

Self-propelled
No-marking tyres
4 x 2 drive
345 degree non-continuous turret turning
Swing cover
Proportional joystick
Emergency lower system
Emergency stop system
Anti-overturning system
Automatic brake system
Explosion-proof valve
Fault diagnosis
Self-leveling system
Flashing light

Options

Lithium battery
Preset AC power socket
Full-motion alarm
Height-limit anti-collision rod
Anti-pinch device in the basket
Work lamp

HANGCHA GROUP CO., LTD. reserves the right to make any changes without notice concerning colors, equipment, or specifications detailed in this brochure, or to discontinue individual models. The colors of trucks delivered may differ slightly from those in brochures.
HANGCHA trucks conform to the European Safety Requirements.
ISO9001:2015 / ISO14001:2015 / ISO45001:2018.
The battery row lists both options: 160 Ah lithium battery / 200 Ah lead-acid battery (both 48 V).
Horizontal extension distance printed as '5.5+0.5' (jib + basket components).
