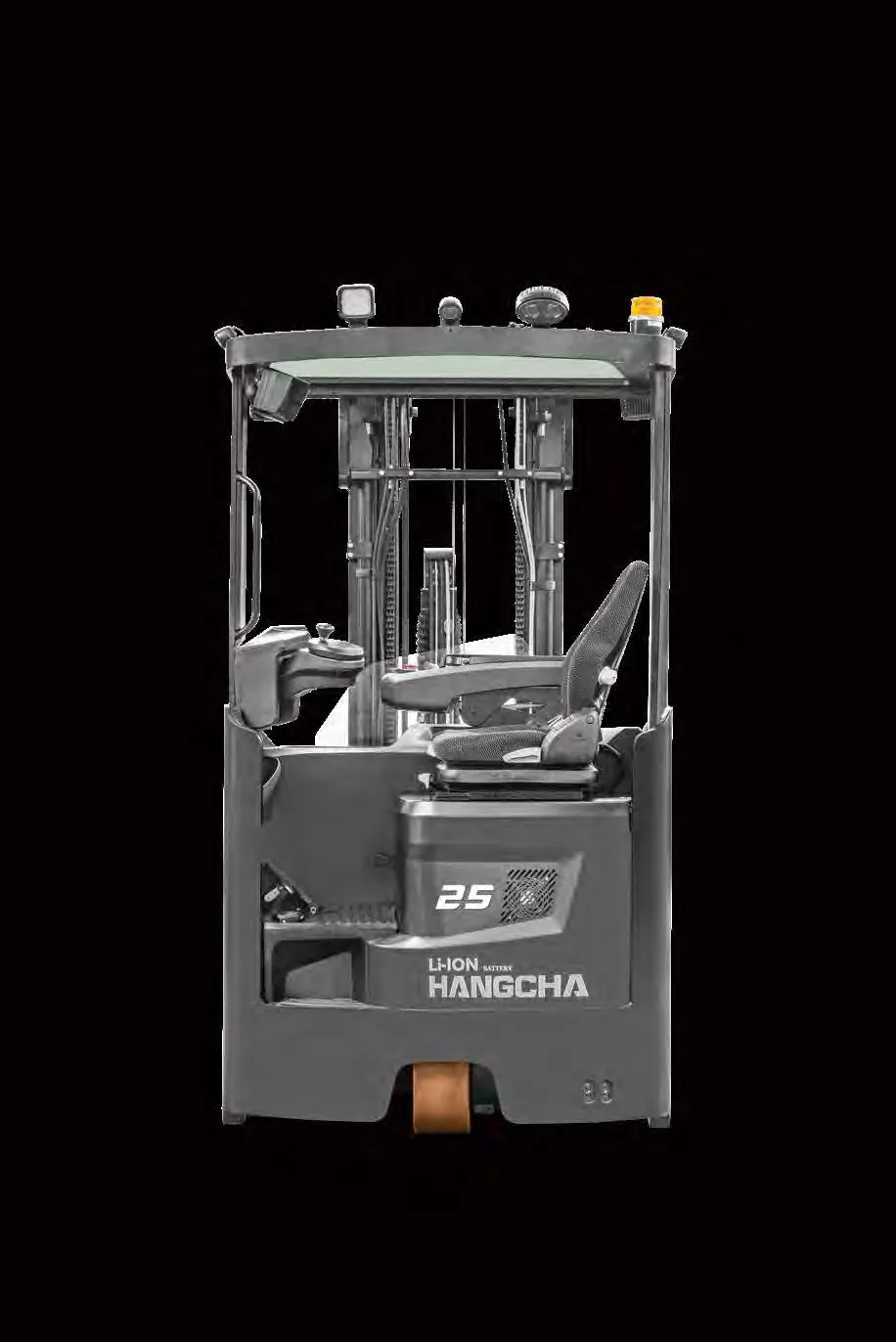

XC Lithium Electric Reach Truck, 1.4 to 2.5 t

ElectricSale and rental

Capacity: 1.4 - 2.5 t
Specifications by model: 10 models

The XC series covers electric reach trucks from 1.4 to 2.5 tonnes, offered in 10 models (mechanical-control XC5 and fingertip XC5D versions, with or without cab). Every unit ships with a standard CATL 80V lithium battery for fast charging and narrow-aisle warehouse work, with a standard lift height of 3,000 mm extendable up to 13,000 mm as an option. A cold-storage version with a fully enclosed cab (-30 degrees C) is available. Offered for sale and for rental.

Standard CATL 80V lithium battery across the range, fast charging and long service life
Load capacity from 1,400 to 2,500 kg, lifting up to 13,000 mm
Compact mast and side-routed hydraulics for improved visibility
Cold-storage version with an enclosed cab, rated down to -30 degrees C

Distributed brand : Hangcha

The needs assessment is free and without obligation.

Available for sale, new and used Available for flexible rental Maintenance handled by our teams

Specifications by model

Hangcha specifications for the 10 models in the XC Lithium Electric Reach Truck, 1.4 to 2.5 t range, by capacity, power type, lift height and dimensions.

Model	CQD14-XC5-SI★ / CQD14-XC5D-SI★	CQD16-XC5-SI★ / CQD16-XC5D-SI★	CQD18-XC5-SI★ / CQD18-XC5D-SI★	CQD20-XC5-SI★ / CQD20-XC5D-SI★	CQD25-XC5-SI★ / CQD25-XC5D-SI★	CQD14-XC5-SIJS★ / CQD14-XC5D-SIJS★ (with cab)	CQD16-XC5-SIJS★ / CQD16-XC5D-SIJS★ (with cab)	CQD18-XC5-SIJS★ / CQD18-XC5D-SIJS★ (with cab)	CQD20-XC5-SIJS★ / CQD20-XC5D-SIJS★ (with cab)	CQD25-XC5-SIJS★ / CQD25-XC5D-SIJS★ (with cab)
Distinguishing mark
Manufacturer	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.	HANGCHA GROUP CO.,LTD.
Manufacturer's type designation	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Drive: electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric
Operator type	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated
Rated capacity/rated load(Q (kg))	1400	1600	1800	2000	2500	1400	1600	1800	2000	2500
Load centre distance(c (mm))	600	600	600	600	600	600	600	600	600	600
Load distance, centre of drive axle to fork(x (mm))	360¹⁾	410¹⁾	385	362²⁰⁾	484²⁰⁾	282¹⁾	332¹⁾	307	362²⁰⁾	484²⁰⁾
Wheelbase(y (mm))	1355	1405	1405	1471	1601	1355	1405	1405	1471	1601
Weight
Service weight (incl. battery)(kg)	3330	3370	3370	3470	3620	3460	3500	3500	3600	3681
Service weight (without battery)(kg)	3055	3095	3095	3195	3345	3185	3225	3225	3325	3406
Tyres, chassis
Tyres: solid rubber, superelastic, pneumatic, polyurethane	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Tyre size, front	Ø343×140	Ø343×140	Ø343×140	Ø343×140	Ø400×160	Ø343×140	Ø343×140	Ø343×140	Ø343×140	Ø400×160
Tyre size, rear	Ø285×100	Ø285×100	Ø285×100	Ø343×108	Ø343×108	Ø285×100	Ø285×100	Ø285×100	Ø343×108	Ø343×108
Wheels, number front / rear (x = driven wheels)	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Tread, rear(b11 (mm))	1170	1170	1170	1162	1162	1170	1170	1170	1162	1162
Dimensions
Tilt of fork carriage forward/backward(α/β (°))	2/5	2/5	2/5	2/5	2/5	2/5	2/5	2/5	2/5	2/5
Height, mast lowered(h1 (mm))	2100	2100	2100	2100	2100	2100	2100	2100	2100	2100
Free lift(h2 (mm))	105	105	110	110	110	105	105	110	110	110
Lift(h3 (mm))	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
Height, mast extended(h4 (mm))	3965	3965	3965	3965	3965	3965	3965	3965	3965	3965
Height of overhead guard(h6 (mm))	2264	2264	2264	2264	2264	2264	2264	2264	2264	2264
Seat height relating to SIP(h7 (mm))	1159	1159	1159	1159	1159	1159	1159	1159	1159	1159
Overall length(l1 (mm))	2400³⁾	2400³⁾	2425	2514²¹⁾	2542²¹⁾	2558³⁾	2558³⁾	2425	2594²¹⁾	2622²¹⁾
Length to face of forks(l2 (mm))	1250³⁾	1250³⁾	1275	1364²¹⁾	1392²¹⁾	1408³⁾	1408³⁾	1433	1444²¹⁾	1472²¹⁾
Overall width(b1/b2 (mm))	1270/1270	1270/1270	1270/1270	1270/1270	1270/1270	1270/1270	1270/1270	1270/1270	1270/1270	1270/1270
Fork dimensions DIN ISO 2331(s/e/l (mm))	40×122×1150²⁶⁾	40×122×1150²⁶⁾	40×122×1150	40×122×1150	40×122×1150	40×122×1150²⁶⁾	40×122×1150²⁶⁾	40×122×1150	40×122×1150	40×122×1150
Fork carriage ISO 2328, class/type A,B	2A	2A	2A	2A	2A	2A	2A	2A	2A	2A
Fork-carriage width(b3 (mm))	830	830	830	830	830	830	830	830	830	830
Distance between fork-arms(b5 (mm))	750	750	750	750	750	750	750	750	750	750
Distance between wheel-arms(b4 (mm))	940	940	940	940	940	940	940	940	940	940
Reach distance(l4 (mm))	571⁴⁾	621⁴⁾	588	594²⁰⁾	716²⁰⁾	493⁴⁾	543⁴⁾	510	594²⁰⁾	716²⁰⁾
Ground clearance, centre of wheelbase(m2 (mm))	80	80	80	80	80	80	80	80	80	80
Aisle width for pallets 1000 x 1200 crossways(Ast (mm))	2687⁵⁾	2701⁵⁾	2719	2802²²⁾	2867²⁴⁾	2826⁵⁾	2838⁵⁾	2857	2882²²⁾	2947²⁴⁾
Aisle width for pallets 800 x 1200 lengthways(Ast (mm))	2740⁶⁾	2745⁶⁾	2768	2855²³⁾	2896²⁵⁾	2891⁶⁾	2896⁶⁾	2918	2935²³⁾	2976²⁵⁾
Turning radius(Wa (mm))	1610	1660	1660	1726	1876	1690	1740	1740	1806	1956
Length across wheel arms(l7 (mm))	1775	1825	1825	1920	2070	1855	1905	1905	2000	2150
Performance data
Travel speed, laden/unladen(km/h)	14/14	14/14	14/14	14/14	14/14	14/14	14/14	14/14	14/14	14/14
Lift speed, laden/unladen(m/s)	0.61/0.81	0.59/0.81	0.5/0.7	0.48/0.7	0.45/0.7	0.61/0.81	0.59/0.81	0.5/0.7	0.48/0.7	0.45/0.7
Lowering speed, laden/unladen(m/s)	XC5:0.52/0.52 XC5D:0.56/0.56	XC5:0.52/0.52 XC5D:0.56/0.56	XC5:0.52/0.52 XC5D:0.56/0.56	XC5:0.52/0.52 XC5D:0.56/0.56	XC5:0.52/0.52 XC5D:0.56/0.56	XC5:0.52/0.52 XC5D:0.56/0.56	XC5:0.52/0.52 XC5D:0.56/0.56	XC5:0.52/0.52 XC5D:0.56/0.56	XC5:0.52/0.52 XC5D:0.56/0.56	XC5:0.52/0.52 XC5D:0.56/0.56
Reaching speed, laden/unladen(mm/s)	240/240	240/240	200/200	200/200	200/200	240/240	240/240	200/200	200/200	200/200
Max. gradeability, laden/unladen(%)	10/15	10/15	10/15	10/15	10/15	10/15	10/15	10/15	10/15	10/15
Service brake	Electric+Mech.	Electric+Mech.	Electric+Mech.	Electric+Mech.	Electric+Mech.	Electric+Mech.	Electric+Mech.	Electric+Mech.	Electric+Mech.	Electric+Mech.
Parking brake	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric
Electric-engine
Drive motor rating S2 60 min(kW)	8.1 AC	8.1 AC	8.1 AC	8.1 AC	8.1 AC	8.1 AC	8.1 AC	8.1 AC	8.1 AC	8.1 AC
Lift motor rating at S3 15%(kW)	20 AC	20 AC	20 AC	20 AC	20 AC	20 AC	20 AC	20 AC	20 AC	20 AC
Battery acc. to DIN 43531/35/36 A,B,C, no	no	no	no	no	no	no	no	no	no	no
Battery voltage, nominal capacity(V/Ah)	80 /250	80 /250	80 /250	80 /250	80 /250	80 /250	80 /250	80 /250	80 /250	80 /250
Battery weight(kg)	275	275	275	275	275	275	275	275	275	275

Hangcha manufacturer specifications, given per model and subject to change; final figures are confirmed in your quote.

Highlights

A new dimension of performance: XC series reach truck with lithium power
Maximum travelling speed 14 km/h
Maximum load capacity 2,500 kg
Maximum lift height 13,000 mm
Maximum lifting speed 0.81 m/s
High residual capacity at 6,500 mm
CATL lithium battery standard on all series; 80V voltage system for fast charging, long service life and less energy loss
Special-shaped lithium battery pack: compact, frees up cab operating space and broadens view
Working time > 10h; fast charging time ≤ 2h
Compact mast design + eccentric middle cylinder + side-routed hydraulic tubing/wiring for a wider view inside and outside the mast
Novel profile style and compact interior with fewer exposed fasteners
Excellent ergonomic design: fingertip switch control, adjustable steering wheel position, integral suspended seat, electrically adjustable pedal height, dashboard angle adjustment
4.3 inch multifunctional interactive color-screen instrument with shortcut buttons (steering mode, battery power, travelling speed, lifting height, load weight, etc.)
Comprehensively improved functions: height selection, height limit, central sideshift, horizontal fork positioning
Safety from every angle: drive control limit reduces travel/traverse speed as forks raise; battery lock with creep speed interlock
Easy maintenance: battery removable from the seat; seat rotates open >180°; hood easily dismounted
Options: stacking/retrieval via fork video monitoring; positioning laser in fork tips; traction control; Floor Spot blue dot; panorama roof panel; Easy Access (key/PIN/transponder)

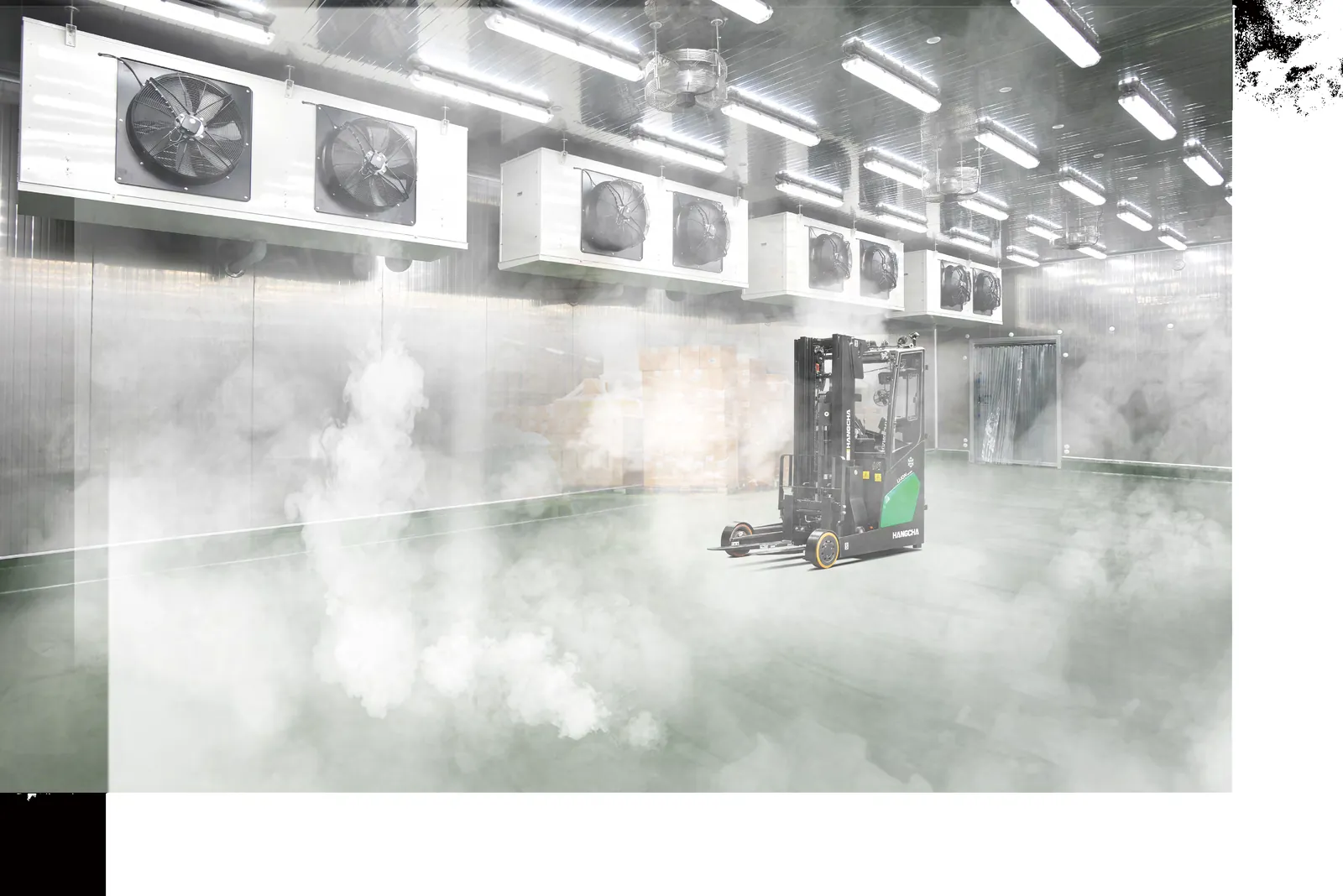

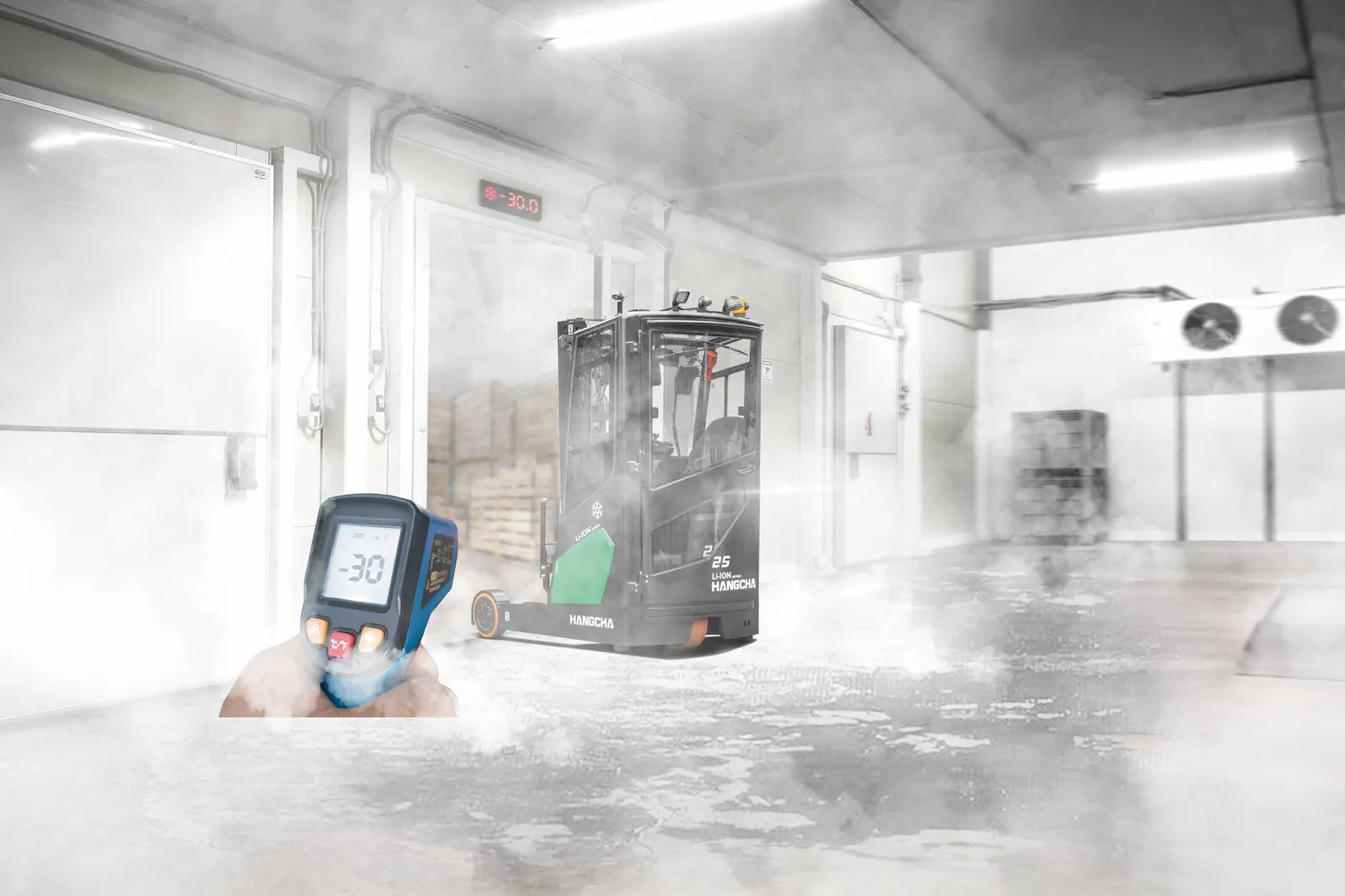

Cold storage product: fully enclosed cab rated for -30 °C (cab temperature stays above 0 °C; optional fan heater raises it to ~10 °C)

Standard equipment

CATL 80V/250Ah lithium battery (size S) standard on all capacities
Mast reach damping system
Lifting damping system
Drive control limit (limits travel + traverse speed as forks raise)
Battery lock with creep speed interlock
Travelling speed control at corner
180° steering mode
ZF transmission
USB power socket
Keyed start
Operating light in the direction of the fork
Alarm light
Adjustable steering wheel
Instrument angle adjustment
Electrically adjustable pedal height (per model)
Sequential Seat Belt Interlock System
Load backrest
OPS system
4.3 inch multifunctional interactive color-screen instrument
Height display / height selection / height limit (standard incl. free-lift range on XC5D fingertip models)
Central sideshift and horizontal fork alignment (standard on XC5D fingertip models)
Enclosed cab, reading light, double-speed heater, front/back/top window wipers, front window spray, side glass opening, window breaker (standard on SIJS cab / cold-storage models)

Options

CATL 80V/400Ah lithium battery (size L)
EVE 80V/304Ah (size S) or 80V/460Ah (size L) lithium battery
Cold storage model (-30 °C) / full closed cab (optional on SI, standard on SIJS)
High power fan heater for cab (raises cab temperature to ~10 °C in -30 °C cold storage)
Full free triple mast (fork dimensions become 35×100×1150 on 1.4/1.6t)
Soft landing system
Electric lowering limit (stop forks above outriggers if mast retracted)
Drive wheel skid control system (traction control)
360° steering mode
Fork video monitoring and positioning laser
Start with a PIN code or by a card (Easy Access authorisation)
Beep
Operating light in the reverse direction of the fork
Blue light (Floor Spot)
Three-sided one line laser projection light
Electric fan
Suctioned / backflow oil filter clogging alarm
BF6-3 or MSG65/522 suspension seat
Panorama roof / PVC ceiling
Curved rearview mirror; left and right rear view mirrors
Fire extinguisher
Simultaneous lift and reach (lift speed -10%, reach speed -30%; XC5D only)

Spec-table footnotes (page 13 & 14): 1) h3>7000mm: -25mm. 2) h3>7000mm: -8mm. 3) h3>7000mm: +25mm. 4) h3>7000mm: -33mm. 5) h3>7000mm: +19mm. 6) h3>7000mm: +23mm. 20) h3≥12000mm: -150mm. 21) h3≥12000mm: +150mm. 22) h3≥12000mm: +115mm. 23) h3≥12000mm: +137mm. 24) h3≥12000mm: +105mm. 25) h3≥12000mm: +134mm; 26) With optional Full free triple mast: 35×100×1150.
★ = CE model. All listed model codes carry the CE mark.
Lowering speed row (5.3) distinguishes control type: XC5 (mechanical) 0.52/0.52 m/s; XC5D (fingertip) 0.56/0.56 m/s.
Standard mast lift h3 shown in the main spec table is 3000 mm; full mast range is given in the Mast Specification tables (up to 11000 mm for 1.4/1.6t, 11500 mm for 1.8t, 13000 mm for 2.0t and 2.5t).
Drive control limit graph (page 8) applies only to 2.0/2.5t: travel speed drops from 14 km/h toward 1.0-1.5 km/h and traverse speed from ~200 to lower values as lift height rises; 1.5 m free-lift threshold applies only to the fingertip system.
HANGCHA GROUP CO., LTD. reserves the right to make changes to colors, equipment or specifications, or to discontinue individual models.
Residual load capacity charts (page 14) provided per capacity (1.4t, 1.6t, 1.8t, 2.0t, 2.5t) and for the 2.0t/2.5t Truck With Cab versions; full value grids transcribed in details.md.
