A Series Premium Electric Reach Truck, 1.2 to 2 t
ElectricSale and rental
- Capacity
- 1.2 - 2 t
- Specifications by model
- 4 models

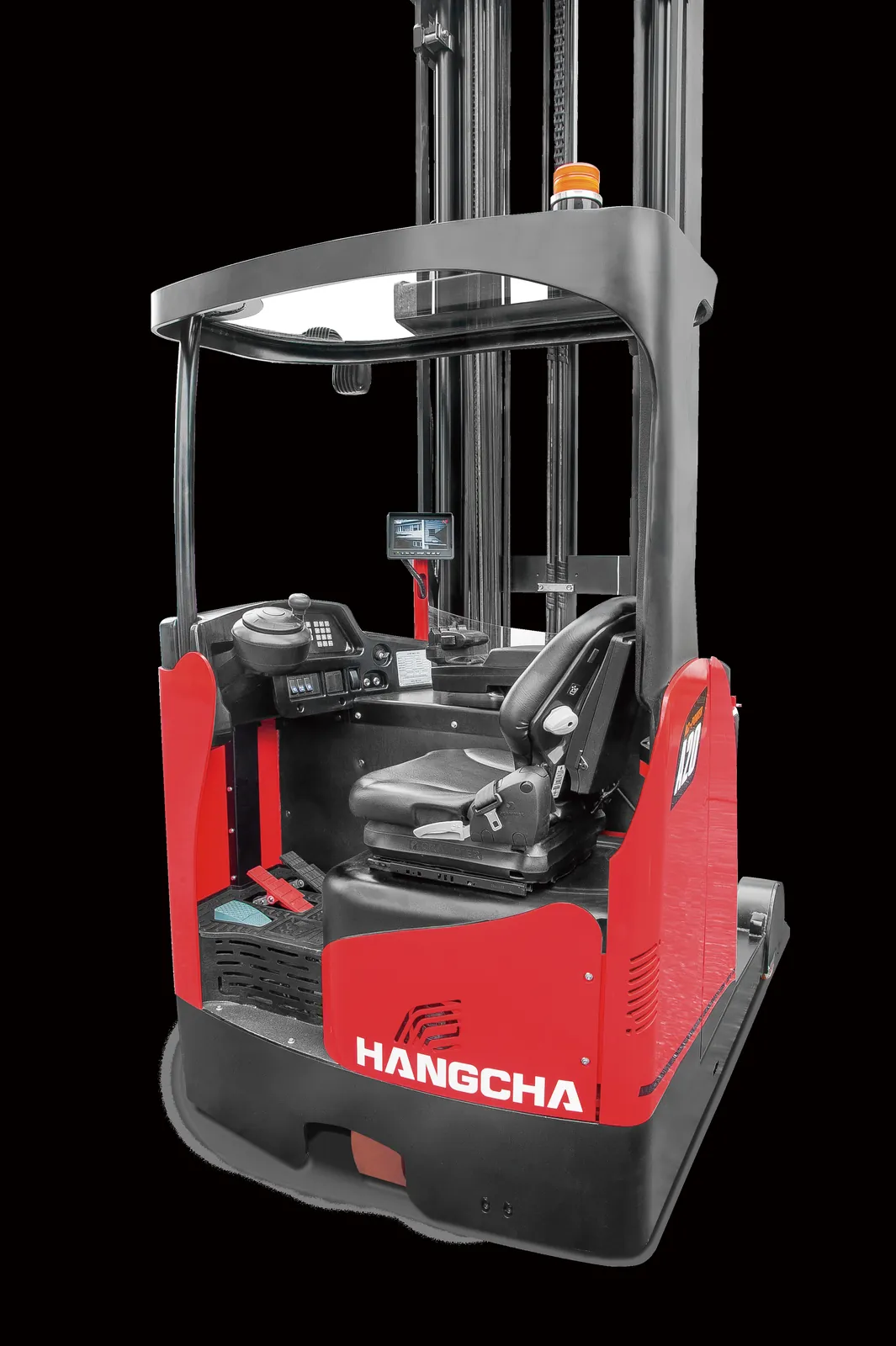

The A Series Premium reach truck is an electric truck built for multi-level warehouse storage, with a 1.2 to 2 t capacity across 4 models (CQD12 to CQD20). It pairs an imported drivetrain (ZF gearbox, Schabmuller motors, Sauer-Danfoss valve) with the INMOTION control system for handling in narrow aisles. Available for sale and rental.
- 1.2 to 2 t capacity across 4 models for multi-level warehouse storage
- Electric steering switchable between 360-degree and 180-degree modes with low steering effort
- INMOTION control system with 4 controllers linked by CAN bus
- Imported components: ZF gearbox, Schabmuller motors, Sauer-Danfoss valve
Distributed brand : Hangcha
The needs assessment is free and without obligation.
Download the spec sheet (PDF)Specifications by model
Hangcha specifications for the 4 models in the A Series Premium Electric Reach Truck, 1.2 to 2 t range, by capacity, power type, lift height and dimensions.
| Model | CQD12-AC5H★ | CQD14-AC5H★ | CQD16-AC5H★ | CQD20-AC5H★ |
|---|---|---|---|---|
| Distinguishing mark | ||||
| Manufacturer | HANGCHA GROUP CO.,LTD. | HANGCHA GROUP CO.,LTD. | HANGCHA GROUP CO.,LTD. | HANGCHA GROUP CO.,LTD. |
| Manufacturer's type designation | CQD12-AC5H★ | CQD14-AC5H★ | CQD16-AC5H★ | CQD20-AC5H★ |
| Drive: electric (battery or mains), diesel, petrol, fuel gas | Electric | Electric | Electric | Electric |
| Operator type: hand, pedestrian, standing, seated, order-picker | Seated | Seated | Seated | Seated |
| Rated capacity/rated load(Q (kg)) | 1200 kg | 1400 kg | 1600 kg | 2000 kg |
| Load centre distance(c (mm)) | 600 mm | 600 mm | 600 mm | 600 mm |
| Load distance, centre of drive axle to fork(x (mm)) | 269 mm | 269 mm | 269 mm | 344 mm 1) |
| Load distance, centre of drive axle to fork, mast reached forward(x1 (mm)) | 221 mm | 221 mm | 221 mm | 221 mm |
| Wheelbase(y (mm)) | 1460 mm | 1460 mm | 1460 mm | 1535 mm |
| Weight | ||||
| Service weight (including battery)(kg) | 3407 kg 1) | 3407 kg 1) | 3407 kg 1) | 3458 kg 1) |
| Tyres, chassis | ||||
| Tyres: solid rubber, superelastic, pneumatic, polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane |
| Tyre size, front | Ø343×140 | Ø343×140 | Ø343×140 | Ø343×140 |
| Tyre size, rear ×2 | Ø330×100 | Ø330×100 | Ø330×100 | Ø330×100 |
| Wheels, number front / rear (x = driven wheels) | 1×/2 | 1×/2 | 1×/2 | 1×/2 |
| Tread width, rear(b11 (mm)) | 1168 mm | 1168 mm | 1168 mm | 1168 mm |
| Dimensions | ||||
| Tilt of mast/fork carriage forward/backward(α/β (°)) | 2/4 ° | 2/4 ° | 2/4 ° | 2/4 ° |
| Height, mast lowered(h1 (mm)) | 2315 mm | 2315 mm | 2315 mm | 2315 mm |
| Free lift(h2 (mm)) | 1350 mm | 1350 mm | 1350 mm | 1350 mm |
| Lift(h3 (mm)) | 5000 mm | 5000 mm | 5000 mm | 5000 mm |
| Height, mast extended(h4 (mm)) | 5965 mm | 5965 mm | 5965 mm | 5965 mm |
| Height of overhead guard(h6 (mm)) | 2200 mm | 2200 mm | 2200 mm | 2200 mm |
| Seat height/stand height(h7 (mm)) | 1045 mm | 1045 mm | 1045 mm | 1045 mm |
| Overall length(l1 (mm)) | 2509 mm | 2509 mm | 2509 mm | 2509 mm 1) |
| Length to face of forks(l2 (mm)) | 1439 mm | 1439 mm | 1439 mm | 1439 mm 1) |
| Overall width(b1/b2 (mm)) | 1270 mm | 1270 mm | 1270 mm | 1270 mm |
| Fork dimensions(s/e/l (mm)) | 40/122/1070 mm | 40/122/1070 mm | 40/122/1070 mm | 40/122/1070 mm |
| Fork carriage ISO 2328, class/type A,B | ISO2328 2A | ISO2328 2A | ISO2328 2A | ISO2328 2A |
| Fork-carriage width(b3 (mm)) | 942 mm | 942 mm | 942 mm | 942 mm |
| Distance between fork-arms(b5 (mm)) | 382-746 mm | 382-746 mm | 382-746 mm | 382-746 mm |
| Distance between wheel-arms(b4 (mm)) | 940 mm | 940 mm | 940 mm | 940 mm |
| Reach distance(l4 (mm)) | 490 mm | 490 mm | 490 mm | 565 mm 1) |
| Ground clearance, centre of wheelbase(m2 (mm)) | 68.5 mm | 68.5 mm | 68.5 mm | 68.5 mm |
| Aisle width for pallets 1000 x 1200 crossways(Ast (mm)) | 2871 mm | 2871 mm | 2871 mm | 2889 mm 1) |
| Aisle width for pallets 800 x 1200 lengthways(Ast (mm)) | 2938 mm | 2938 mm | 2938 mm | 2945 mm 1) |
| Turning radius(Wa (mm)) | 1725 mm | 1725 mm | 1725 mm | 1800 mm |
| Length across wheel arms(l7 (mm)) | 1895 mm | 1895 mm | 1895 mm | 1970 mm |
| Performance data | ||||
| Travel speed, laden/unladen(km/h) | 14/14 km/h | 14/14 km/h | 14/14 km/h | 14/14 km/h |
| Lift speed, laden/unladen(m/s) | 0.450/0.480 m/s | 0.410/0.480 m/s | 0.360/0.480 m/s | 0.330/0.480 m/s |
| Lowering speed, laden/unladen(m/s) | 0.510/0.330 m/s | 0.510/0.330 m/s | 0.510/0.330 m/s | 0.510/0.330 m/s |
| Max. gradeability, laden/unladen(%) | 12/15 % | 12/15 % | 11/15 % | 10/15 % |
| Acceleration time, laden/unladen (0-10m)(s) | 5.3/5 s | 5.3/5 s | 5.3/5 s | 5.3/5 s |
| Service brake | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic |
| Parking brake | Electric | Electric | Electric | Electric |
| Electric | ||||
| Drive motor rating S2 60 min(kW) | 6.4 AC kW | 6.4 AC kW | 6.4 AC kW | 6.4 AC kW |
| Lift motor rating at S3 15%(kW) | 12.8 AC kW | 12.8 AC kW | 12.8 AC kW | 12.8 AC kW |
| Battery acc. to DIN 43531/35/36 A,B,C, no | DIN 43531 C | DIN 43531 C | DIN 43531 C | DIN 43531 C |
| Battery voltage, nominal capacity K5(V/Ah) | 48V /460Ah | 48V /460Ah | 48V /460Ah | 48V /600Ah |
| Battery weight(kg) | 939 kg | 939 kg | 939 kg | 980 kg 1) |
| Battery dimensions(l/b/h (mm)) | 1223×355×784 mm | 1223×355×784 mm | 1223×355×784 mm | 1223×355×784 mm 1) |
| Additional data | ||||
| Type of drive control | MOSFET/AC | MOSFET/AC | MOSFET/AC | MOSFET/AC |
| Manufacturer/Type | CURTIS | CURTIS | CURTIS | CURTIS |
| Operating pressure for attachments(bar) | 150 bar | 150 bar | 150 bar | 150 bar |
| Oil volume for attachments (max)(l/min) | 65 l/min | 65 l/min | 65 l/min | 65 l/min |
| Sound level at the driver´s ear according to EN / DIN 12 053(dB (A)) | 72 dB (A) | 72 dB (A) | 72 dB (A) | 72 dB (A) |
Hangcha manufacturer specifications, given per model and subject to change; final figures are confirmed in your quote.
Highlights
- 10 reasons to choose A series reach truck
- APPEARANCE - Beautiful / Compact / Ergonomic
- HIGH PERFORMANCE - Transmission system / Motor
- RENEWABLE ENERGY TECHNOLOGIES - Hydraulic system
- PERFECT RESIDUAL LOAD CAPACITY - Mast system
- FLEXIBILITY - Steering system
- EXCELLENT ERGONOMIC & COMFORT - Fingertip system
- ADVANCE - INMOTION control system
- RELIABILITY - Plastic oil tank / Braking system
- VISIBILITY - Overhead guard
- MAINTENANCE - Battery side roll-out

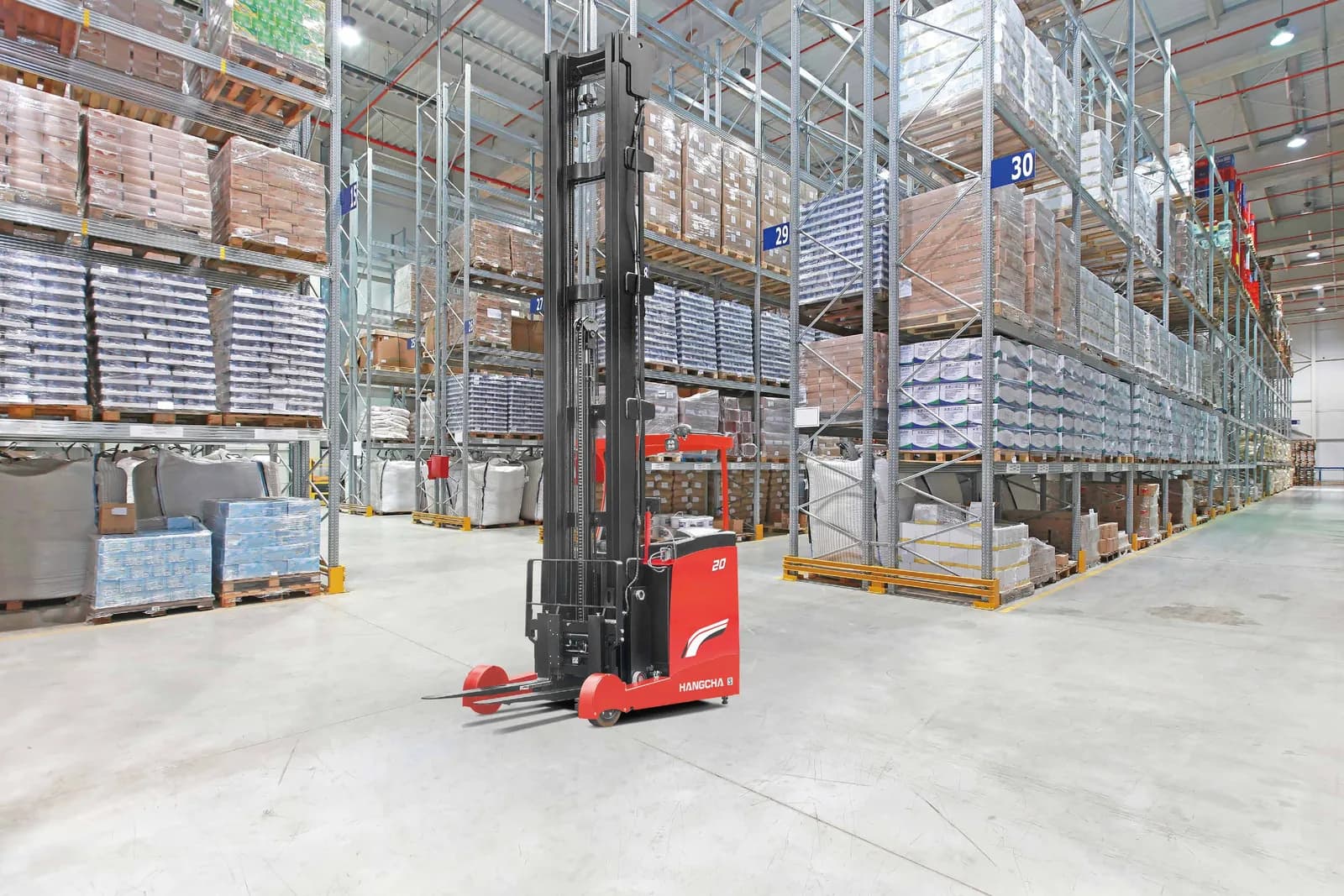

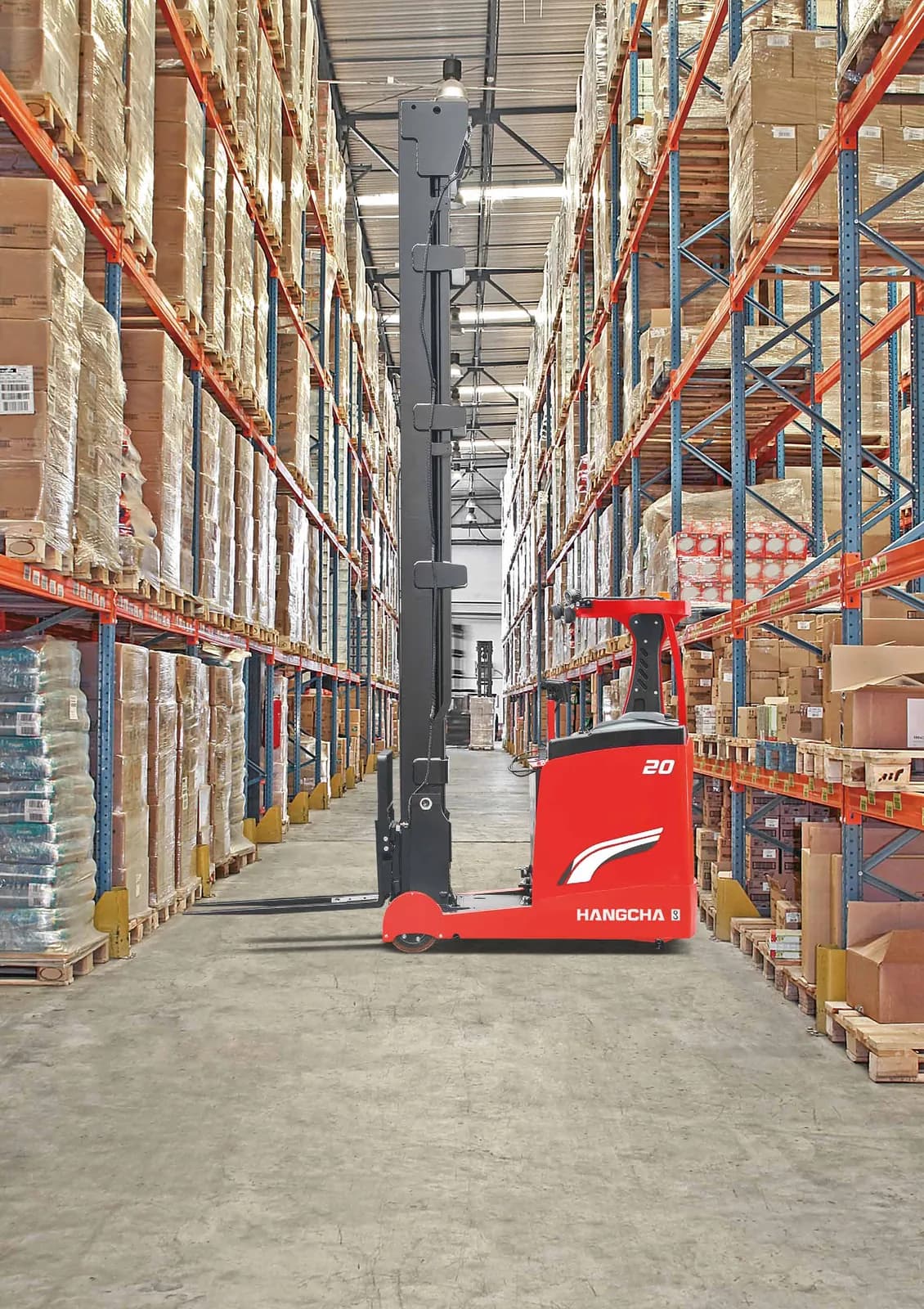

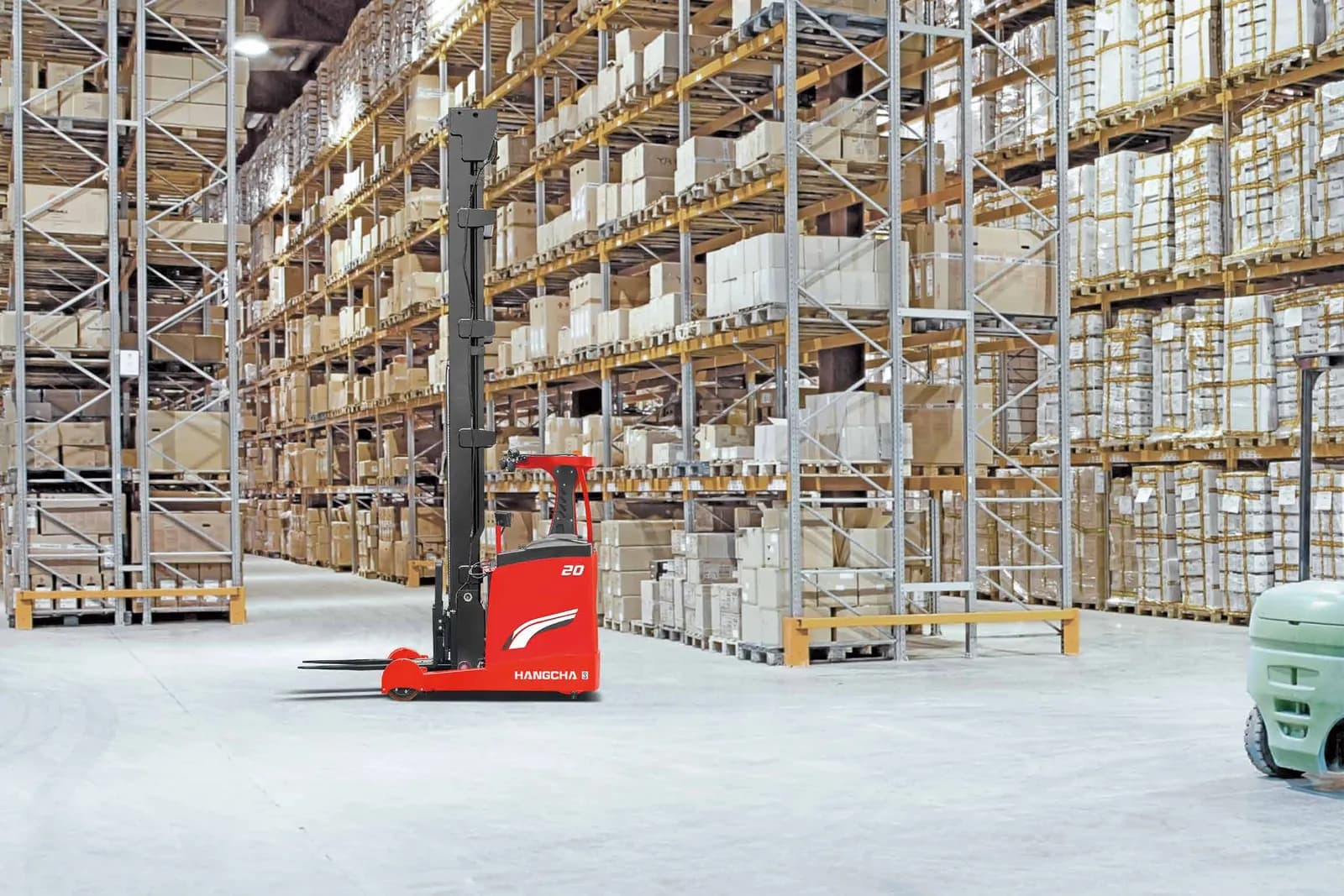

- Mainly used in multi-level warehouse; CQD20-AD2H rated load capacity 2 tons, maximum lifting height 12.5m, load capacity 1100kg at maximum lifting height
- Technical parameters and configuration close to Crown, Linde, Jungheinrich, and Hyster
- Top appearance design teams from Europe and China; inherits appearance elements of A Series electric trucks
- Drive system with ZF gearbox imported from Germany, imported Schabmuller AC drive motor and Schabmuller electric steering motor; all core parts are ZF products imported from Germany
- Mast system made of imported steel channels; maximum lifting height 12.5m, load capacity 1100kg at maximum height
- Automatic select height level function (optional) pre-selects shelf height
- EPS system (standard) switchable between 360-degree and 180-degree operation; minimum steering force 3N (regular forklift about 10N)
- In 360-degree mode, when steering exceeds 270 degree the reverse switches to forward automatically, no reversing/parking required
- Drive wheel automatic centering function; automatic limit on speed and accelerated speed when steering
- Fingertip system standard (imported SAUER-DANFOSS hydraulic valve); four finger control functions and seven major functions; CAN Bus communication; adjustable soft armrest
- 4 INMOTION controllers (drive, oil pump, steering, valve) communicate by CAN Bus; waterproof connectors
- Cutting-edge SAUER-DANFOSS electromagnetic multi-way valve imported from Germany; potential energy recovery switching function (optional)
- Fully-open pedal structure; electrical parts fully exposed for easy maintenance
- Overhead guard with two pieces of 25mm tempered glass infilled with glue for panoramic visibility and impact resistance
- LLD PE plastic oil tank with hydraulic filter element from German HYDAC; electronic fan for thermal equilibrium
- Electromagnetic braking system with three separate brakes: two sets of MATRIX electronic drive brake imported from UK, one set of INTORQ Electric Parking Brake from Germany
- DIN standard battery standard up to 48V/600Ah, maximum optional capacity 775Ah; battery side roll-out standard
- Li-Ion Technology / Innovative Lithium-Ion (cover badge)
Standard equipment
- SCHABMULLER AC traction motor
- SCHABMULLER AC steering motor
- HEPU AC pump motor
- Electric Parking Brake (EPB) system
- Load wheel adopts electromagnetic proportional braking technology
- INMOTION control system
- Real-time shifting between 360-degree steering mode and 180-degree steering mode
- Electric Power Steering (EPS) system
- GRAMMER Fingertip system
- PU tyre
- LED headlamp
- Alarm lamp
- 4 modes power selection
- 5M full free triplex mast
- SAUER-DANFOSS 4 spools control valve
- Load backrest
- PE LLD material oil tank
- Imported lower noise gear pump
- Energy regenerating during deceleration
- Battery side roll-out
- Buffering on lifting limit
- Soft landing system
- Blue spot
- Automatic limit on speed and accelerated speed when steering
- Lift top buffering (Triplex mast)
- Mast move forward/backward buffering
- Automatic speed reduction when the mast lifting high position (Triplex mast)
Options
- 5.0 to 12.5M full free triplex mast made of imported steel channels
- Camera system
- Height level selection / Fork height display
- OPS system
- Panoramic glazed overhead guard
- Big capacity battery according to DIN STD
- Various length forks
- Drive-in rack overhead guard
- GRAMMER MSG531 seat
- ★ CE model
- 1) Different battery sizes change these values (main spec table)
- 1) Battery capacity: 750Ah (mast specification table)
- HANGCHA GROUP CO., LTD. reserves the right to make any changes without notice concerning colors, equipment, or specifications detailed in this brochure, or to discontinue individual models. The colors of trucks delivered may differ slightly from those in brochures.
- HANGCHA trucks conform to the European Safety Requirements.
- ISO9001:2015, ISO14001:2015, ISO45001:2018
- Cover product-code designation: CQD12/14/16/20-AD2H; spec-table model codes: CQD12/14/16/20-AC5H★
