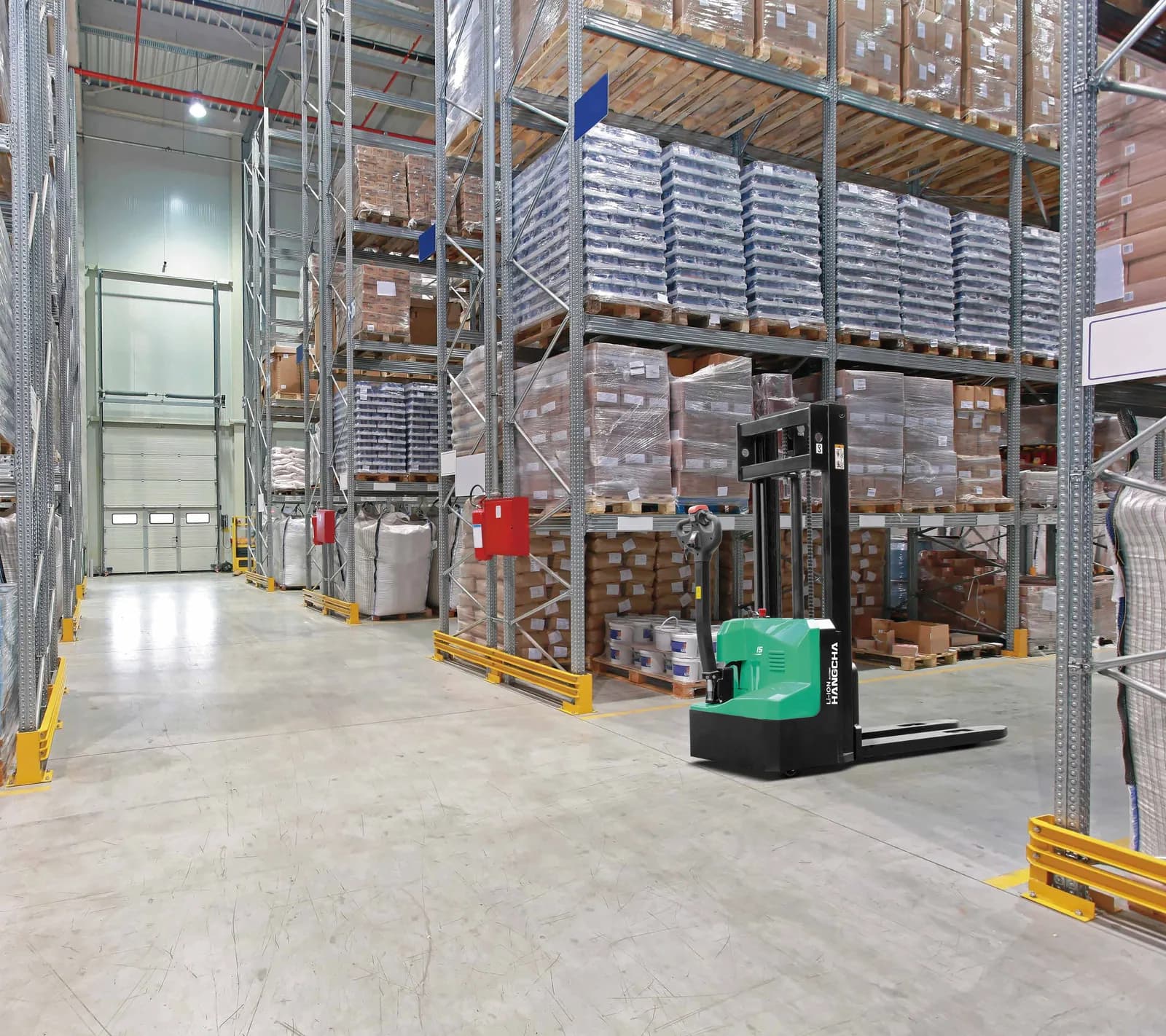

XA Electric Stacker, 1.2 to 1.5 t

ElectricSale and rental

Capacity: 1.2 - 1.5 t
Specifications by model: 12 models

La serie XA regroupe des gerbeurs accompagnants electriques d'une capacite de 1,2 a 1,5 tonne, disponibles en 12 modeles (versions mono-mat, mat duplex a vision large, et modele a longerons ecartes). Conçus par Hangcha pour l'entreposage et la logistique, ils reposent sur un moteur brushless a aimants permanents (PMB) sans entretien et une batterie lithium LiFePO4. La commande CAN bus avec afficheur LCD facilite le diagnostic et l'exploitation au quotidien. Disponibles a la vente et a la location.

1.2 to 1.5 t capacity across 12 models covering most handling needs
Maintenance-free permanent magnet brushless (PMB) motor with low noise and low heat
LiFePO4 lithium battery backed by a 3 year or 6000 hour warranty
CAN bus control with LCD display and safety features (ramp anti-rollback, emergency reverse button)

Distributed brand : Hangcha

The needs assessment is free and without obligation.

Available for sale, new and used Available for flexible rental Maintenance handled by our teams

Specifications by model

Hangcha specifications for the 12 models in the XA Electric Stacker, 1.2 to 1.5 t range, by capacity, power type, lift height and dimensions.

Model	CDD12-XAMN11-ISZ	CDD15-XAMN11-ISZ	CDD12-XAMN11-SZ	CDD15-XAMN11-SZ	CDD12-XAMN11-I	CDD15-XAMN11-I	CDD12-XAMN11	CDD15-XAMN11	CTD12-XAMN11-ISZ	CTD15-XAMN11-ISZ	CTD12-XAMN11-SZ	CTD15-XAMN11-SZ
Distinguishing mark
Manufacturer (abbreviation)	HANGCHA GROUP CO., LTD.	HANGCHA GROUP CO., LTD.	HANGCHA GROUP CO., LTD.	HANGCHA GROUP CO., LTD.	HANGCHA GROUP CO., LTD.	HANGCHA GROUP CO., LTD.	HANGCHA GROUP CO., LTD.	HANGCHA GROUP CO., LTD.	HANGCHA GROUP CO., LTD.	HANGCHA GROUP CO., LTD.	HANGCHA GROUP CO., LTD.	HANGCHA GROUP CO., LTD.
Manufacturer's type designation	CDD12-XAMN11-ISZ	CDD15-XAMN11-ISZ	CDD12-XAMN11-SZ	CDD15-XAMN11-SZ	CDD12-XAMN11-I	CDD15-XAMN11-I	CDD12-XAMN11	CDD15-XAMN11	CTD12-XAMN11-ISZ	CTD15-XAMN11-ISZ	CTD12-XAMN11-SZ	CTD15-XAMN11-SZ
Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Operator type: hand, pedestrian, standing, seated, order-picker	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Rated capacity/rated load(kg)	1200 kg	1500 kg	1200 kg	1500 kg	1200 kg	1500 kg	1200 kg	1500 kg	1200 kg	1500 kg	1200 kg	1500 kg
Load centre distance(c (mm))	600 mm	600 mm	600 mm	600 mm	600 mm	600 mm	600 mm	600 mm	600 mm	600 mm	600 mm	600 mm
Load distance, centre of drive axle to fork(x (mm))	790 mm	790 mm	790 mm	790 mm	790 mm	790 mm	790 mm	790 mm	735 mm	735 mm	735 mm	735 mm
Wheelbase(y (mm))	1213 mm	1213 mm	1213 mm	1213 mm	1193 mm	1193 mm	1193 mm	1193 mm	1213 mm	1187 mm	1213 mm	1213 mm
Weight
Service weight(kg)	615 kg	625 kg	650 kg	660 kg	495 kg	500 kg	530 kg	535 kg	670 kg	680 kg	705 kg	715 kg
Axle loading, laden front/rear(kg)	625/1190 kg	750/1375 kg	645/1205 kg	770/1390 kg	565/1130 kg	625/1375 kg	575/1155 kg	635/1400 kg	645/1225 kg	770/1410 kg	665/1240 kg	790/1425 kg
Axle loading, unladen front/rear(kg)	445/170 kg	450/175 kg	460/175 kg	480/180 kg	355/140 kg	360/140 kg	380/150 kg	385/150 kg	485/185 kg	490/190 kg	515/190 kg	520/195 kg
Tyres, chassis
Tyres: solid rubber, superelastic, pneumatic, polyurethane	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Tyre size, front	Ø210×70	Ø210×70	Ø210×70	Ø210×70	Ø210×70	Ø210×70	Ø210×70	Ø210×70	Ø210×70	Ø210×70	Ø210×70	Ø210×70
Tyre size, rear	Ø80×70	Ø80×70	Ø80×70	Ø80×70	Ø80×70	Ø80×70	Ø80×70	Ø80×70	Ø85×70	Ø85×70	Ø85×70	Ø85×70
Additional wheels (dimensions)	Ø80×64	Ø80×64	Ø80×64	Ø80×64	Ø80×64	Ø80×64	Ø80×64	Ø80×64	Ø80×64	Ø80×64	Ø80×64	Ø80×64
Wheels, number front/rear (x = driven wheels)	1×, 1/4	1×, 1/4	1×, 1/4	1×, 1/4	1×, 1/4	1×, 1/4	1×, 1/4	1×, 1/4	1×, 1/4	1×, 1/4	1×, 1/4	1×, 1/4
Tread, front(b10 (mm))	585 mm	585 mm	585 mm	585 mm	585 mm	585 mm	585 mm	585 mm	585 mm	585 mm	585 mm	585 mm
Tread, rear(b11 (mm))	520 mm	520 mm	520 mm	520 mm	520 mm	520 mm	520 mm	520 mm	1190 mm	1190 mm	1190 mm	1190 mm
Dimensions
Height, mast lowered(h1 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Lift(h3 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Height, mast extended(h4 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Height drawbar in driving position min./max.(h14 (mm))	890/1271 mm	890/1271 mm	890/1271 mm	890/1271 mm	890/1271 mm	890/1271 mm	890/1271 mm	890/1271 mm	890/1271 mm	890/1271 mm	890/1271 mm	890/1271 mm
Height, lowered(h13 (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Overall length(l1 (mm))	1733 mm	1733 mm	1733 mm	1733 mm	1710 mm	1710 mm	1710 mm	1710 mm	1683 mm	1683 mm	1683 mm	1683 mm
Length to face of forks(l2 (mm))	583 mm	583 mm	583 mm	583 mm	560 mm	560 mm	560 mm	560 mm	583 mm	583 mm	583 mm	583 mm
Overall width(b1/b2 (mm))	820 mm	820 mm	820 mm	820 mm	820 mm	820 mm	820 mm	820 mm	820 mm	820 mm	820 mm	820 mm
Fork dimensions DIN ISO 2331(s/e/l (mm))	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑	‑
Fork spread(b5 (mm))	680 mm	680 mm	680 mm	680 mm	680 mm	680 mm	680 mm	680 mm	790 mm	790 mm	790 mm	790 mm
Ground clearance, centre of wheelbase(m2 (mm))	25 mm	25 mm	25 mm	25 mm	25 mm	25 mm	25 mm	25 mm	40 mm	40 mm	40 mm	40 mm
Aisle width for pallets 1000 x 1200 crossways(Ast (mm))	2020 mm (1)	2020 mm (1)	2020 mm (1)	2020 mm (1)	2000 mm (1)	2000 mm (1)	2000 mm (1)	2000 mm (1)	1970 mm (3)	1970 mm (3)	1970 mm (3)	1970 mm (3)
Aisle width for pallets 800 x 1200 lengthways(Ast (mm))	2070 mm (2)	2070 mm (2)	2070 mm (2)	2070 mm (2)	2050 mm (2)	2050 mm (2)	2050 mm (2)	2050 mm (2)	1970 mm (4)	1970 mm (4)	1970 mm (4)	1970 mm (4)
Turning radius(Wa (mm))	1460 mm	1460 mm	1460 mm	1460 mm	1440 mm	1440 mm	1440 mm	1440 mm	1440 mm	1440 mm	1440 mm	1440 mm
Performance data
Travel speed, laden/unladen(km/h)	4.2/4.5 km/h	4.2/4.5 km/h	4.2/4.5 km/h	4.2/4.5 km/h	4.2/4.5 km/h	4.2/4.5 km/h	4.2/4.5 km/h	4.2/4.5 km/h	4.2/4.5 km/h	4.2/4.5 km/h	4.2/4.5 km/h	4.2/4.5 km/h
Lift speed, laden/unladen(m/s)	0.115/0.220 m/s	0.100/0.190 m/s	0.115/0.220 m/s	0.100/0.190 m/s	0.115/0.220 m/s	0.100/0.190 m/s	0.115/0.220 m/s	0.100/0.190 m/s	0.115/0.220 m/s	0.100/0.190 m/s	0.115/0.220 m/s	0.100/0.190 m/s
Lowering speed, laden/unladen(m/s)	0.120/0.125 m/s	0.135/0.130 m/s	0.120/0.125 m/s	0.135/0.130 m/s	0.120/0.125 m/s	0.135/0.130 m/s	0.120/0.125 m/s	0.135/0.130 m/s	0.120/0.125 m/s	0.135/0.130 m/s	0.120/0.125 m/s	0.135/0.130 m/s
Max. gradeability, laden/unladen(%)	6/10 %	6/10 %	6/10 %	6/10 %	6/10 %	6/10 %	6/10 %	6/10 %	6/10 %	6/10 %	6/10 %	6/10 %
Service brake	Regenerative	Regenerative	Regenerative	Regenerative	Regenerative	Regenerative	Regenerative	Regenerative	Regenerative	Regenerative	Regenerative	Regenerative
Electric-engine
Drive motor rating S2 60 min(kW)	0.65 kW	0.65 kW	0.65 kW	0.65 kW	0.65 kW	0.65 kW	0.65 kW	0.65 kW	0.65 kW	0.65 kW	0.65 kW	0.65 kW
Lift motor rating at S3 15 %(kW)	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW	2.2 kW
Battery voltage/nominal capacity((V)/(Ah) or kWh)	24/60 (V)/(Ah)	24/60 (V)/(Ah)	24/85 (V)/(Ah)	24/100 (V)/(Ah)	24/60 (V)/(Ah)	24/60 (V)/(Ah)	24/85 (V)/(Ah)	24/100 (V)/(Ah)	24/60 (V)/(Ah)	24/60 (V)/(Ah)	24/85 (V)/(Ah)	24/100 (V)/(Ah)
Battery weight(kg)	17 kg	17 kg	25.8*2 kg	26*2 kg	17 kg	17 kg	25.8*2 kg	26*2 kg	17 kg	17 kg	25.8*2 kg	26*2 kg

Hangcha manufacturer specifications, given per model and subject to change; final figures are confirmed in your quote.

Highlights

The 1.2-1.5t XA Series Mini Stacker is a new-generation product newly developed by Hangcha for warehousing and logistics applications.
Superior Performance: Permanent Magnet Brushless (PMB) motor delivering high performance with low heat generation and low noise levels; PMB control system ensuring lower energy consumption.
Appearance: professional industrial design aesthetics, inheriting the XA family design language with smooth, dynamic contours and compact dimensions; ergonomic principles thoroughly considered.
High efficiency: Powerful drive with 1.2/1.5t load capacity, meeting the handling requirements of most customers.

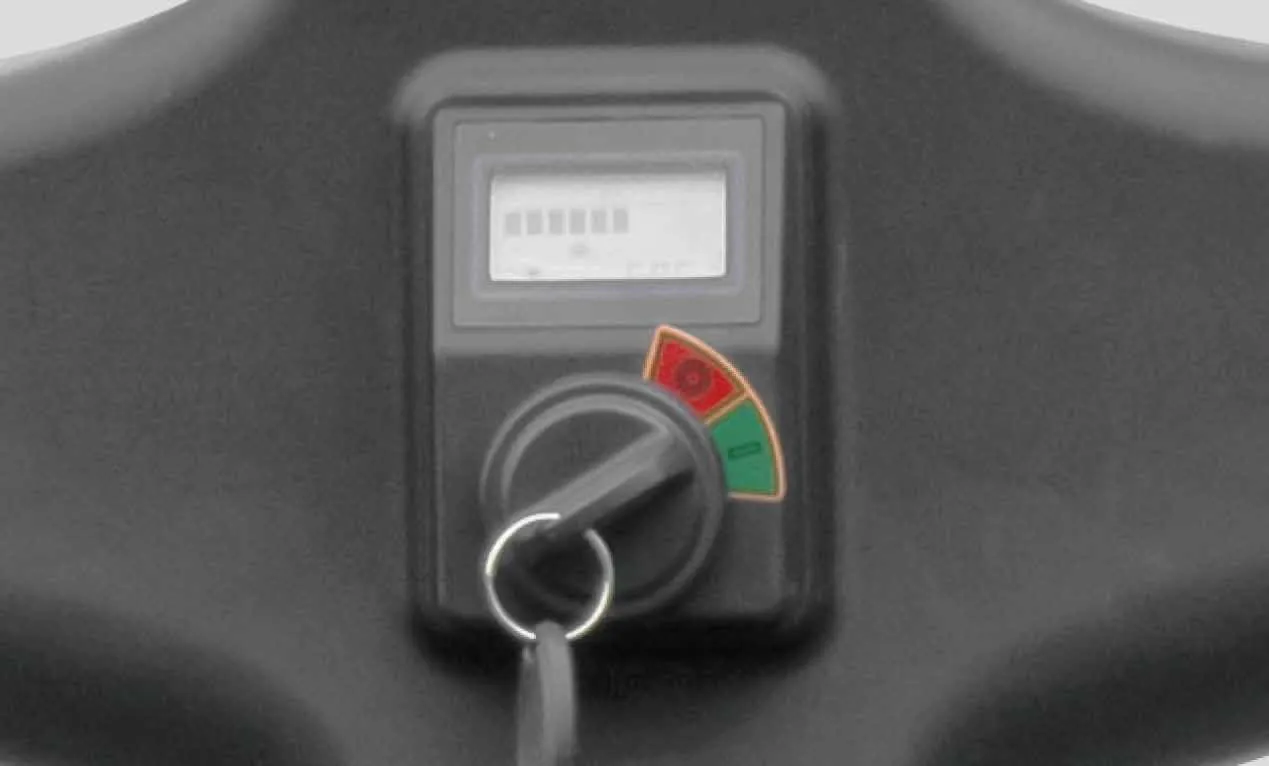

Intelligent: CAN bus control handle with standard LCD display for convenient fault diagnosis, integrated with key switch, card reader or password lock, offering rich functionality.
Comfortable Operation.
Reliability and Safety.
Low operating and maintenance costs.
Safety: Release brake and emergency braking functions ensuring safe travel; Ramp anti-rollback function; Emergency reverse button located at the handle head protecting the operator when traveling backward.
Chassis constructed with high-strength steel plate frame structure, offering substantial residual load capacity and extended service life.
Connectors from renowned brands with reliable protection for all wiring harnesses and cables, significantly improving electrical system reliability.
Mature and stable hydraulic power unit featuring low noise, low vibration, and smooth, reliable lifting and lowering operations.
Key switch equipped with standard dust cover, dustproof, waterproof and oil-resistant.
Adjustable additional wheel height facilitating easier drive wheel load adjustment and anti-slip performance.
Hood and wheel covers manufactured from stamp-formed steel.
Interlock switch utilizing non-contact proximity sensor for extremely high reliability.
Stamp-formed forks providing superior strength and impact resistance, combined with fork tip guidance.
Four-point support design ensuring rational drive wheel load distribution, excellent traction, superior stability and visibility.
Standard soft landing automatically reducing lowering speed when forks are below a certain height from ground level.
Maintenance: PMB motor requiring no maintenance; drive side panel easily opened for motor removal; all pivot pins fitted with lubricated bushings; rear hood easily removable; bolt-together mast design.
HANGCHA provides Li-ion battery (LiFePO4) with 3 years or 6000 hours warranty.

Standard equipment

24V Permanent Magnet Brushless Motor
Hydraulic Power Unit (HPU)
Polyurethane Wheels
Fork Length 1150mm
Fork Length 1070mm for the straddle leg model
Fork spread 680mm
Fork spread 1310mm for the straddle leg model
Fork Surface Ground Clearance 85mm
Battery
On-board Charger
Height-Adjustable additional Wheels
Dual Load Wheels
Controller
Multi-function Handle with Key Switch and Display Instrument
Horn
Emergency Disconnect Switch
Electromagnetic Brake

Options

Fork Length 1220mm
Proportional Lift
PC Guard
Universal Key Switch
Handle Depression Timing (Operator Presence Timing)
2.0-3.6m Lift height
1.75/2.0m Lift height for the single column model
Left and Right Rear-view Mirrors

Note: 1) According to VDI2198 standard +276mm. 2) According to VDI2198 standard +163mm. 3) According to VDI2198 standard +335mm. 4) According to VDI2198 standard +335mm.
h1 (lowered height), h3 (lift), h4 (extended height) depend on the mast selected; see Sheet1 (Duplex full-free wide view) and Sheet2 (single cylinder single mast) tables. CDD*-ISZ, CDD*-SZ, CTD* models use Sheet1; CDD*-I and CDD* (no suffix) models use Sheet2.
Battery weight given as 'x*2' denotes two battery packs (e.g. 25.8*2, 26*2).
HANGCHA GROUP CO., LTD. reserves the right to make any changes without notice concerning colors, equipment, or specifications detailed in this brochure, or to discontinue individual models. The colors of trucks delivered may differ slightly from those in brochures.
HANGCHA trucks conform to the European Safety Requirements. ISO9001:2015, ISO14001:2015, ISO45001:2018.
Lithium battery: 2000 full charging cycles with at least 75% residual capacity. Charging temperature 0°C~55°C; Discharge temperature -20°C~65°C; Storage environment temperature -20°C~55°C.

From the same category

Stackers

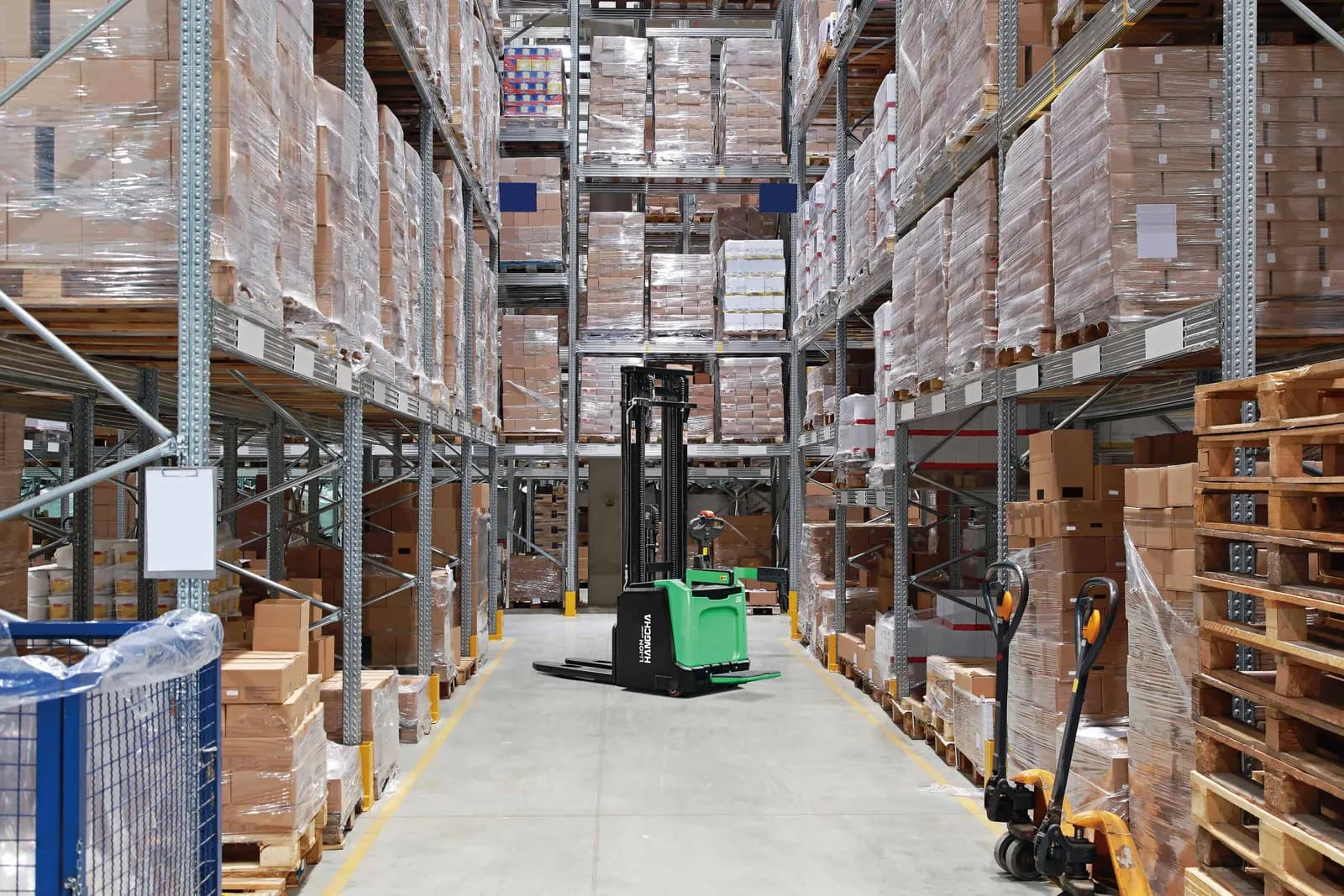

XA Electric Pedestrian Stacker, 1.2 to 2 t
